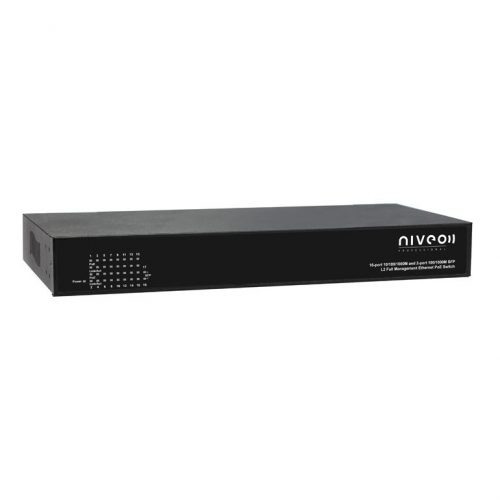

SWITCHE DE RED ADMINISTRABLE NIVEO NGSM16T2

SWITCHE DE RED ADMINISTRABLE NIVEO NGSM16T2

Descripción del producto

Switche de red con 16 puertos 10 / 100 / 1000 Mbps administrable capa 2 y capa 3 con dos slots SFP GIGA. Soporta los protocolos Dante, AES67, Q-SYS entre otros. Soporta SNMP, 802.1Q VLAN, QoS, RSTP, LACP, LLDP, 802.1X, IGMP SNOOPING versión 1, 2 y 3. Direccionamiento Multicast hasta 1024. Administración CLI, WEB, Telnet. Certificaciones FCC Part 15 Subpart B Class B, CE EN 55032 Class B

Información adicional

Interfaces De Red Cobre:

16 RJ45

Interfaces De Red Fibra:

2 SFP

Packet Buffer:

4 Mbits

Mac Address Size:

8K

Control De Flujo:

802.3x (Full)

Spanning Tree:

IEEE 802.1d, IEEE 802.1w, IEEE802.1s

Vlan:

4K VLAN Group, Tagged Based, Voice VLAN con OUI

Igmp Snooping:

v1/v2/v3, soporta hasta 1024 grupos IGMP. Multicast Addresses 1024, IPv6 MLD Snooping 1024, Querier, Inmediate leave

Static Routing:

Hasta 32

Priority Queue Qos:

8 queues/port, DiffServ, Scheduling

Cos:

IEEE 802.1p, IP ToS precedence, IP DSCP

Security:

Administración con nombre de usuario y contraseña, Port Security, IEEE 802.1x, ACL (L2, L3, L4), IP Source Guard, RADIUS (Authentication, Authorization, Accounting), TACACS+. HTTP & SSL v2.0, MAC/IP Filter

Management:

CLI, Web, Telnet, Firmware update via HTTP, SNMP (v1, v2c, v3), RMON (1, 2, 3 & 9), DHCP, System Event/Error Log, NTP/LLDP, IPv6 Configuration, Port Mirroring

Certificaciones:

EMI (FCC Part 15 Subpart B Class B, CE EN 55032 Class B), EMS (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11), Safety (IEC-60950-1 )

Standard:

IEEE 802.3 – 10Base-T  IEEE 802.3u – 100Base-TX  IEEE 802.3ab – 1000Base-T  IEEE 802.3z – 1000 Base-SX/LX  IEEE 802.3az – Energy Efficient Ethernet (EEE)  IEEE 802.3x – Flow Control  IEEE 802.1Q – VLAN  IEEE802.1v – Protocol VLAN  IEEE 802.1p – Class of Service  IEEE 802.1D – Spanning Tree  IEEE 802.1w – Rapid Spanning Tree  IEEE 802.1s – Multiple Spanning Tree  IEEE 802.3ad – Link Aggregation Control Protocol (LACP)  IEEE 802.1AB – LLDP (Link Layer Discovery Protocol)  IEEE 802.1X – Access Contro
